Description

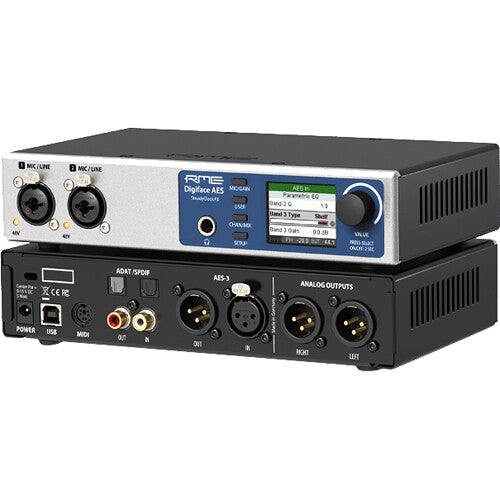

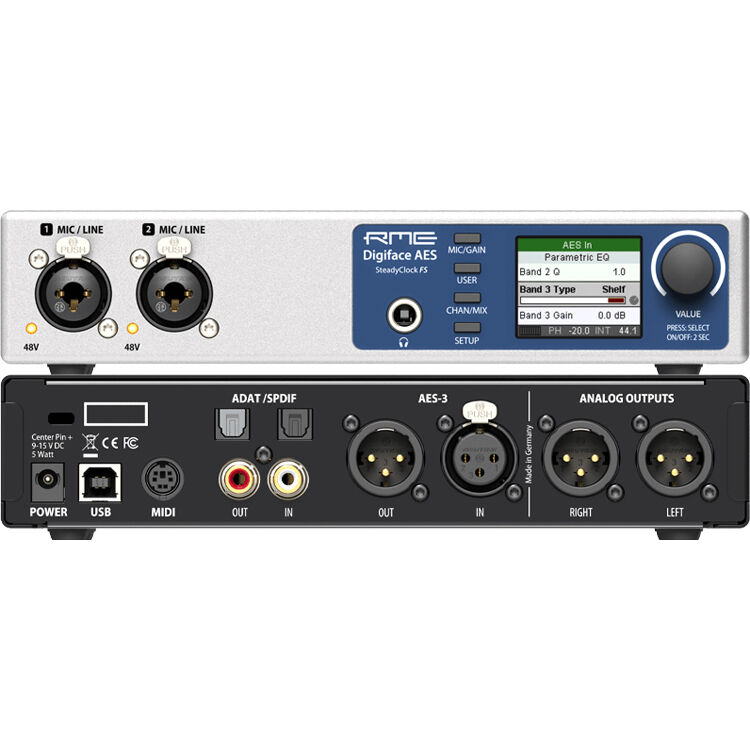

RME Digiface AES – Compact 14×16 USB Interface with AES, S/PDIF & ADAT
Digiface AES packs pro-grade digital and analog connectivity into a portable, bus-powered unit. With AES/EBU, coaxial and optical S/PDIF plus ADAT alongside two studio-quality mic/line inputs and flexible monitoring via TotalMix FX, it’s a precise hub for modern studios and mobile rigs—available from Soundium.
Key Features
- 14-in/16-out I/O: Combine AES/EBU, coaxial & optical S/PDIF, ADAT, and analog I/O in one compact interface
- 2 mic/line preamps: Digitally controlled gain up to 75 dB with switchable +48 V for pristine recordings
- Assignable sample rate converter: Cleanly resolve clocking mismatches on AES or S/PDIF inputs
- TotalMix FX onboard: Low-latency routing with 3-band parametric EQ and Low Cut on inputs/outputs
- SteadyClock FS: Advanced jitter suppression for stable, transparent conversion and digital sync
- Bus-powered with stand-alone: Operates from USB power, stores six setups for computer-free workflows
Customer Benefits
Use one small box to connect digital consoles, outboard, and converters while tracking with clean mic pres and confident clocking. TotalMix FX replaces external monitor controllers and cue mixers, so you can build latency-free submixes, format-convert between AES, S/PDIF and ADAT, and keep sessions moving smoothly with Soundium support.
Quick Specs
- Computer connection: USB 2.0 (class compliant capable)
- Max sample rate / resolution: Up to 192 kHz / 24-bit

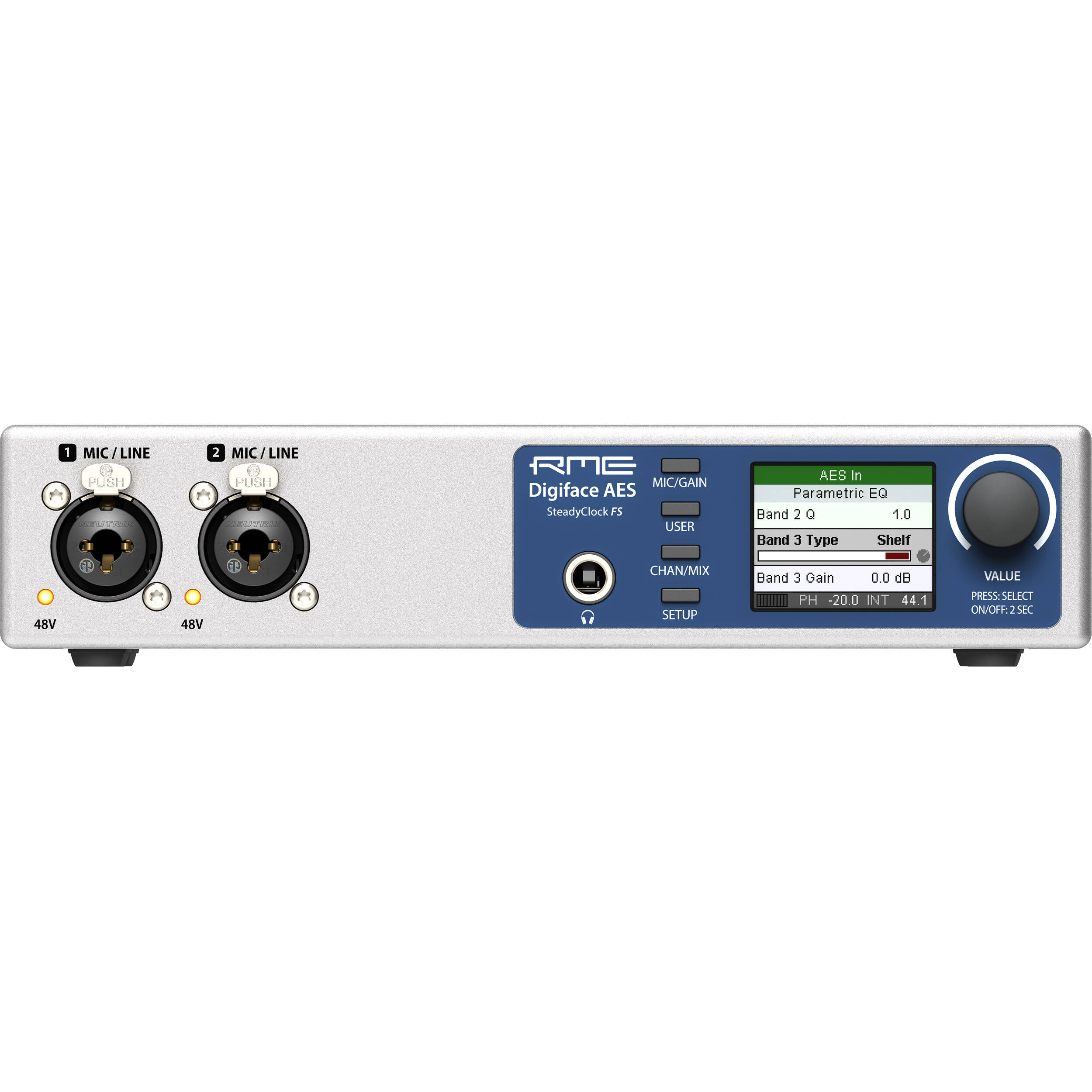

- Analog inputs: 2 × XLR/TRS combo (mic/line)
- Analog outputs: 2 × XLR line; 1 × TRS headphones

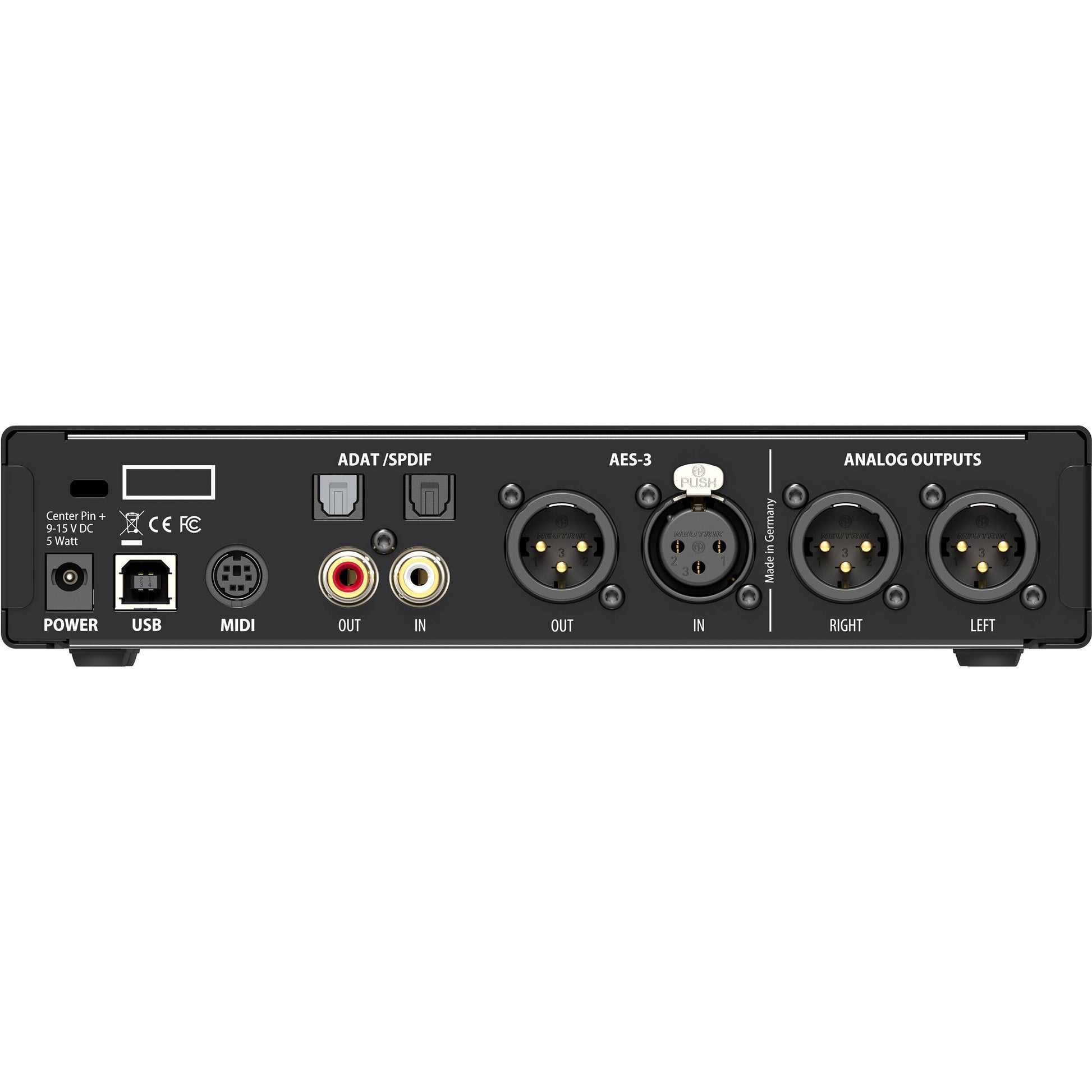

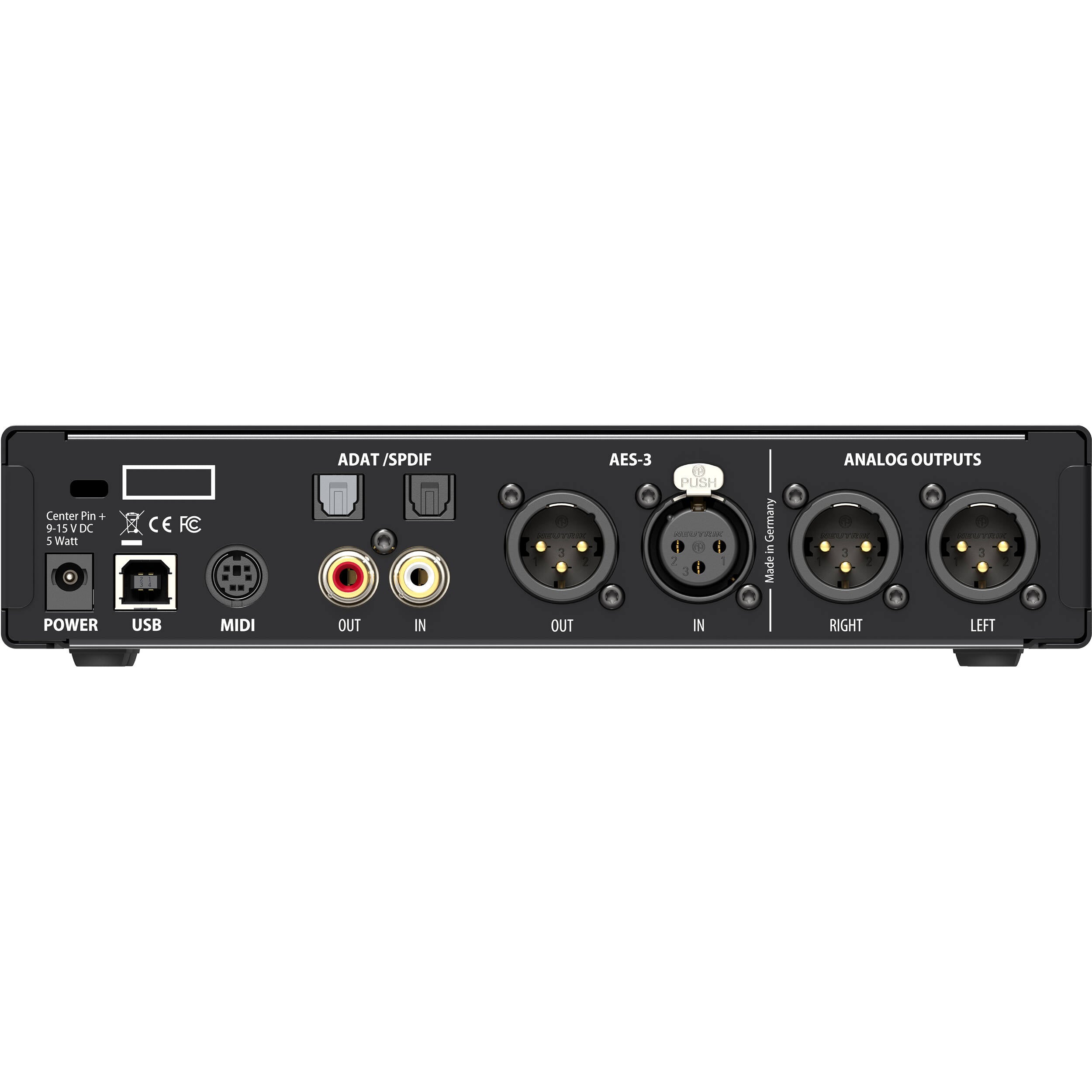

- Digital I/O: 1 × AES/EBU (XLR), 1 × S/PDIF coaxial (RCA), 1 × optical ADAT (switchable to optical S/PDIF)
- MIDI I/O: 1 × In / 1 × Out via included breakout
- Dimensions: 21.5 × 4.4 × 13.0 cm
- Weight: 0.88 kg
- Power: USB bus power or included 12 V DC supply
What’s in the Box
- RME Digiface AES
- USB 2.0 cable (1.8 m)
- MIDI breakout cable
- External 12 V power supply with power cord
Use Cases / Ideal For
Perfect as a digital hub for studio or broadcast, mobile two-mic recording, format conversion between AES/S/PDIF/ADAT, and low-latency cue/monitor mixing.
Compatibility
Works with macOS and Windows; Class Compliant mode enables iPadOS use. TotalMix FX (desktop and iPad) provides full control. Supports optional ARC USB remote.
Pros & Cons
Pros:
- Serious digital connectivity with excellent clocking
- Clean mic pres and flexible DSP EQ/Low-cut
- Stand-alone operation with six user setups
- Bus-powered portability with included PSU for backup
Cons:
- No multitrack USB drive recording (DURec not included)
- Single ADAT port limits channel count at higher sample rates
RME’s Digiface AES brings reliable sync, smart format conversion and studio-quality preamps to a compact interface you can take anywhere—professionally supported by Soundium.
Specifications
General 8
| Brand | RME |
|---|---|
| Product type | Audio Interface |
| Interface features | Phantom power, Onboard DSP / effects, MIDI, Bus powered, Class compliant, iOS / mobile compatible |
| Intended use | Professional Studio, Music Production |
| Form factor | Half-rack 1U |
| Power source | USB |
| Maximum resolution | 24-bit / 192 kHz |
| Compatibility | macOS, Windows, iOS/iPadOS |
Audio 4
| Maximum bit depth | 24-bit |
|---|---|
| Mic preamps | 2 |
| Input channels | 14 |
| Output channels | 16 |
Connectivity 6
| Connectivity | USB |
|---|---|
| Inputs | 2x XLR/TRS combo (mic/line), AES/EBU in, S/PDIF in, ADAT in, MIDI in |
| Outputs | 2x XLR line, 1x 6.3 mm headphone, AES/EBU out, S/PDIF out, ADAT out, MIDI out |
| Computer connection | USB 2.0 (USB-B) |
| Device interface | Headphone Out, Line Out, USB (Audio), Optical (Toslink) |
| Audio output format | Analog, Digital |
Dimensions & weight 2
| Dimensions | 21.5 × 13 × 4.4 cm |
|---|---|
| Weight | 880 g |
In the box
Features
Warranty 1
| Warranty | 3-Year |
|---|
Sources: Manufacturer data
Reviews
No reviews for this product yet. Bought it? Be the first to write one.
★ 4.83 · 6,099 reviews of other Soundium products
All reviewsComparison
Against the closest alternatives.
RME Digiface AES€1.999,00
| RME Fireface 802 FS€1.849,00
| Neumann MT 48€1.999,00
| ||
|---|---|---|---|---|
| General | ||||
Product type |
Audio Interface
|
Audio Interface
|
Audio Interface
|
Audio Interface
|
Price |
€1.999,00 |
€1.849,00 |
€1.999,00 |
€1.899,00 |
Barcode |
—
|
—
|
4044155273748
|
—
|
Brand |
RME
|
RME
|
Neumann
|
Universal Audio
|
Rating |
|
|
|
|
Warranty |
3-Year
|
3-Year
|
3-Year
|
3-Year
|
Availability |
—
|
—
|
—
|
|
PDF Manual |
—
|
—
|
—
| |
| Specifications | ||||
Color |
Black
|
Black
|
White
|
Silver
|
Connectivity technology |
USB
|
USB
|
USB and Ethernet
|
Thunderbolt
|
Power source |
USB
|
AC-powered
|
USB
|
AC-powered
|
Dimensions |
|
|
|
|
Weight |
|
|
|
|
Max resolution The highest digital audio quality the device can process, e.g. PCM 384 kHz/32-bit or DSD 11.2 MHz. Anything above 96 kHz/24-bit already exceeds hi-res streaming and downloads.
|
|
|
|
|
Inputs |
|
|
|
|
Outputs |
|
|
|
|
Form factor |
Half-rack 1U
|
Rackmount 1U
|
Desktop
|
Desktop
|
Computer connection |
|
|
|
|
Input channels Total channels the interface can record at once, analog plus digital (ADAT, S/PDIF). Compare with how many sources you track simultaneously.
|
|
|
|
|
Output channels Total playback channels, analog plus digital. More outputs allow separate headphone mixes, extra monitor pairs and outboard gear routing.
|
|
|
|
|
Mic preamps Number of XLR/combo inputs with a built-in microphone preamp. This sets how many microphones you can record at the same time without extra preamps.
|
|
|
|
|
Compatibility |
|
|
|
|
Features |
Phantom power, Onboard DSP / effects, MIDI, Bus powered, Class compliant, and iOS / mobile compatible
|
Phantom power, Direct monitoring, Onboard DSP / effects, Loopback, MIDI, Class compliant, and iOS / mobile compatible
|
Phantom power, Direct monitoring, Onboard DSP / effects, MIDI, Talkback, and Built-in Microphone
|
Phantom power, Direct monitoring, Onboard DSP / effects, Talkback, and Built-in Microphone
|
Audio purpose |
Professional Studio and Music Production
|
Professional Studio and Music Production
|
Professional Studio, Music Production, and Home Studio
|
Music Production, Home Studio, and Professional Studio
|
