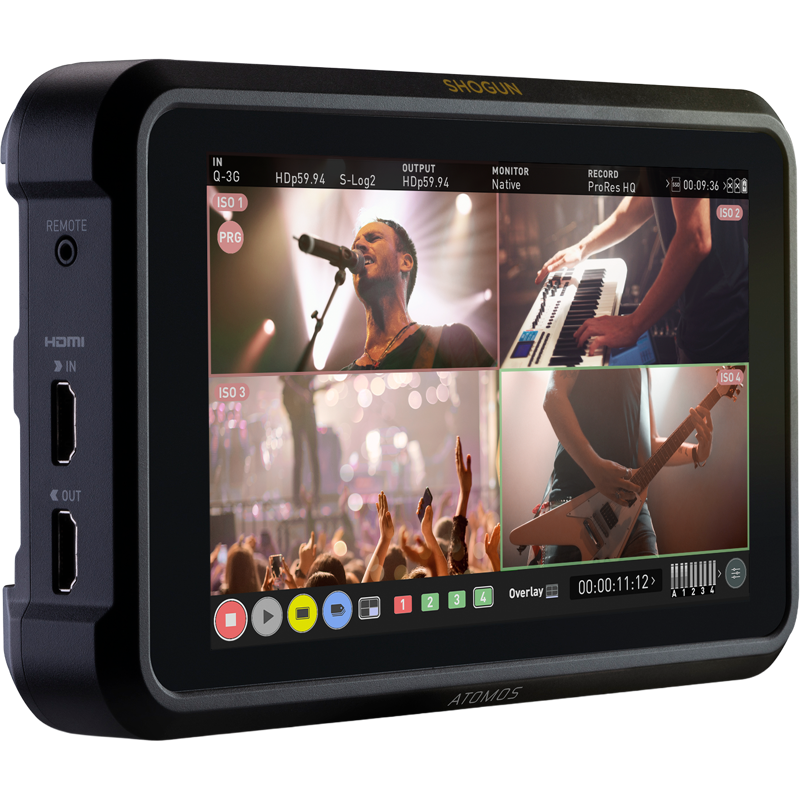

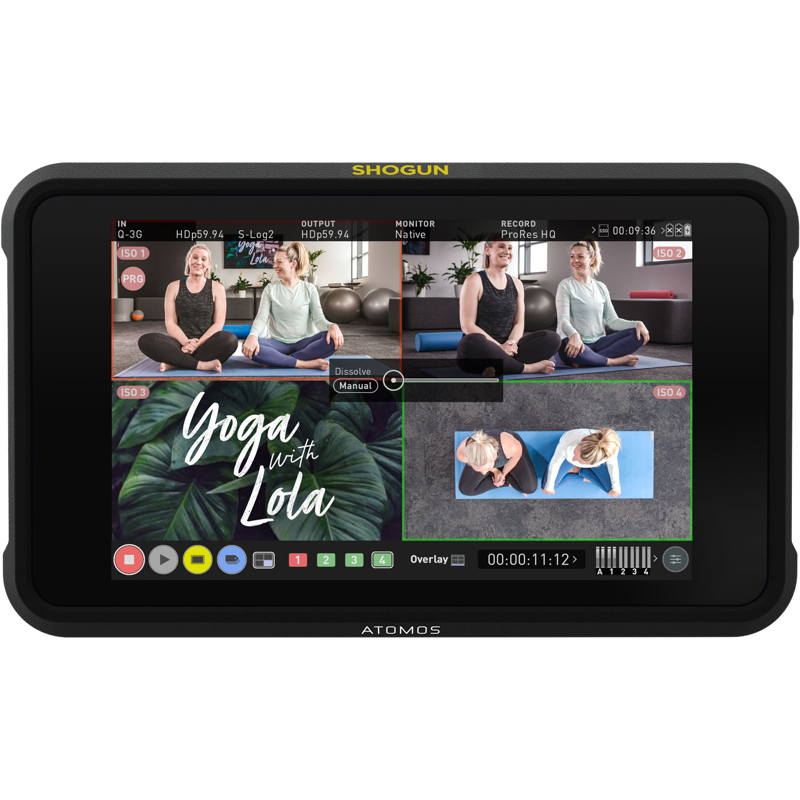

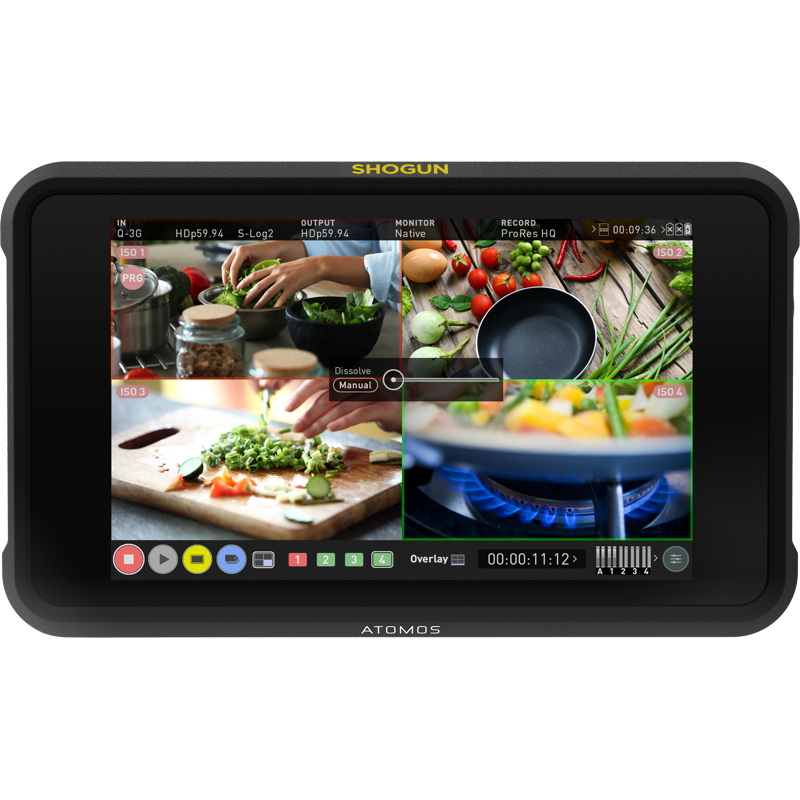

Atomos Shogun Classic – 7" HDR Cinema Monitor-Recorder-Switcher

The Atomos Shogun Classic is a versatile 7-inch camera monitor, recorder, and live switcher built for professional filmmakers, live production teams, and content creators. Combining ultra-bright HDR monitoring, ProRes/DNx recording, and quad-input SDI switching in a single portable device, it delivers cinema-grade tools wherever you shoot — explore it at Soundium.

Key Features

• 7.2" HDR Display: 3000 nit peak brightness, 1920 × 1200 resolution, 10-bit color depth with full-array local dimming and 1,000,000:1 contrast ratio
• Wide Color Gamut: 105% DCI-P3 coverage for accurate HDR and SDR monitoring with calibration support

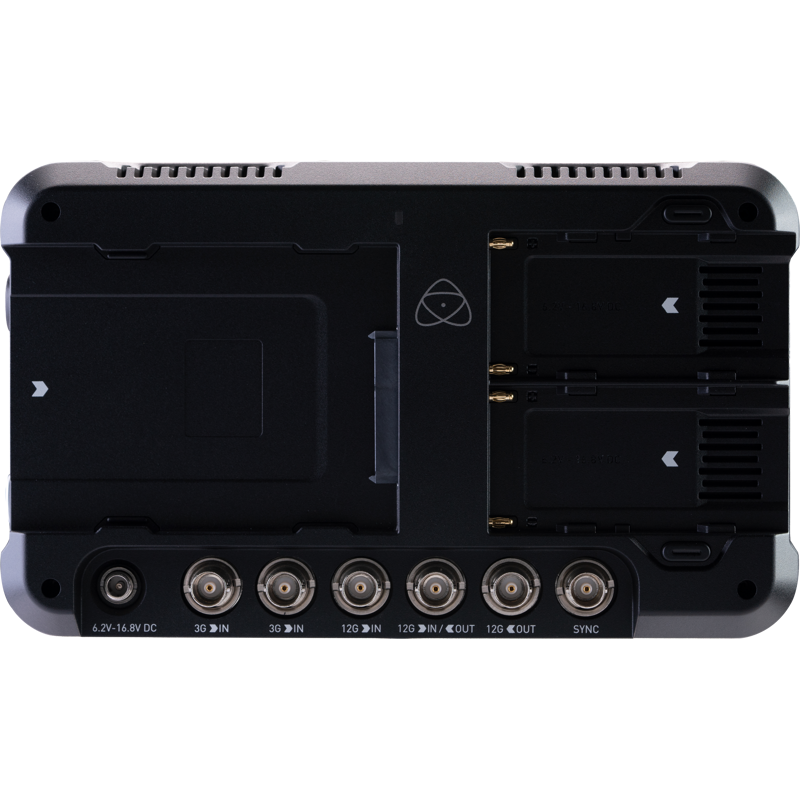

• HDMI + SDI I/O: 1× HDMI 2.0 input/output and quad-link 3G SDI (2× 12G SDI, backwards compatible) for universal camera connectivity
• 4K Recording: Up to DCI/UHD 4Kp60 in Apple ProRes (HQ, 422, LT) and Avid DNxHD/DNxHR codecs
• Multi-Camera Switching: Record up to 4× 1080p60 ISO streams simultaneously with real-time touchscreen switching and a fifth program output
• Professional Monitoring Tools: Custom 3D LUTs, false color, focus peaking, zebras, waveform, RGB parade, vectorscope, anamorphic desqueeze
• Signal Conversion: Built-in HDMI-to-SDI and SDI-to-HDMI cross-conversion
• Timecode & Sync: HDMI/SDI embedded timecode, LTC via BNC, wireless sync with Atomos UltraSync One

Customer Benefits

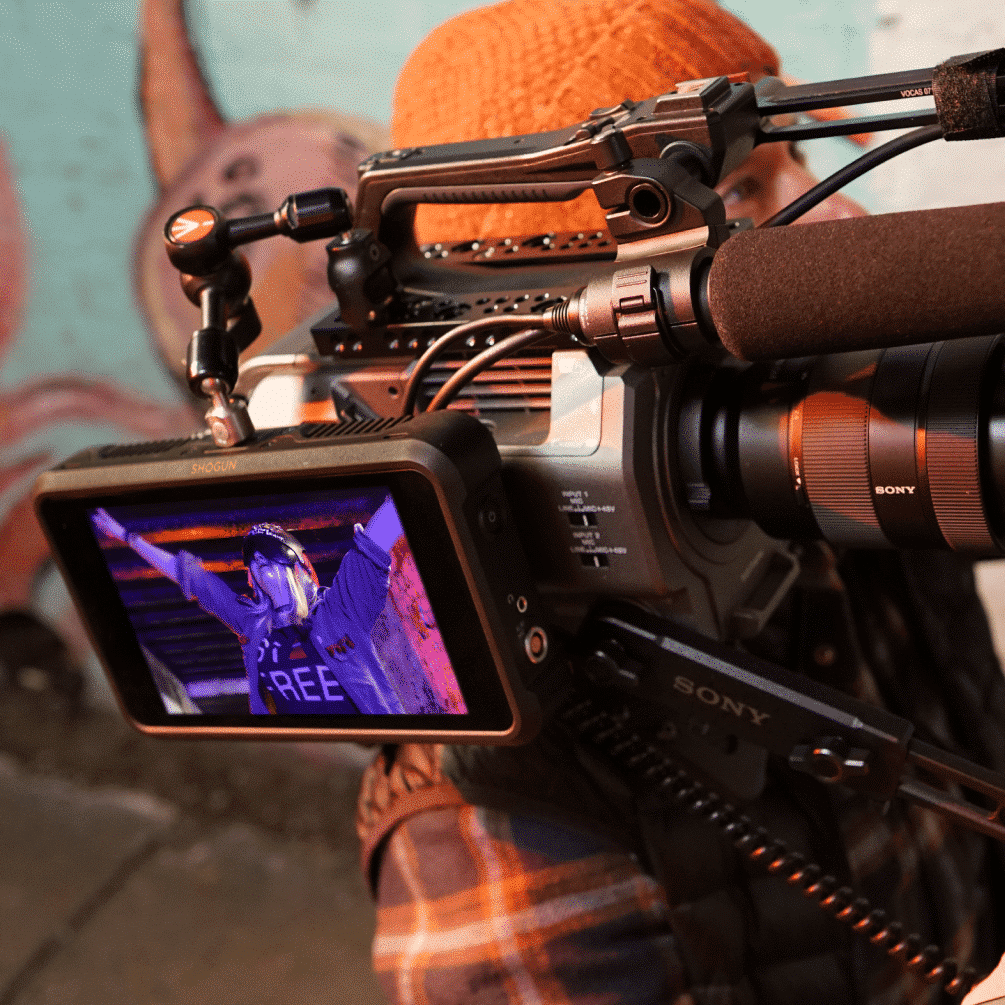

Shogun Classic replaces separate monitors, recorders, and switchers with a single 738 g device that mounts directly on your camera or rig. The ultra-bright 3000 nit screen ensures confident exposure decisions even in direct sunlight, while ProRes recording bypasses compressed in-camera codecs for maximum editing flexibility. For multi-camera shoots, the quad-view switching eliminates the need for a separate video mixer.

Quick Specs

• Display: 7.2" IPS, 1920 × 1200, 325 PPI, 3000 nit
• Color: 10-bit (8+2 FRC), 105% DCI-P3
• Video Input: 1× HDMI 2.0, Quad-Link 3G SDI (2× 12G)
• Video Output: 1× HDMI 2.0, 2× 12G SDI
• Recording: ProRes HQ/422/LT, DNxHD, DNxHR up to 4Kp60
• Audio: 24-bit / 48 kHz PCM, 3.5 mm headphone out, optional XLR
• Media: SSDmini / Master Caddy II/III (SATA 3.0, exFAT)
• Power: 2× NP-F batteries, DC in (6.2–16.8 V)
• Dimensions: 21.4 × 12.7 × 4.5 cm
• Weight: 738 g

What's in the Box

• Atomos Shogun Classic unit
• 1× Master Caddy II drive caddy
• DC locking connector
• Travel case
• Quick start guide

Use Cases / Ideal For

Ideal for cinema and documentary shoots requiring accurate HDR monitoring, live event coverage with multi-camera switching, broadcast and streaming production, and any professional workflow where recording directly to edit-ready ProRes or DNx codecs saves time in post-production.

Compatibility

Compatible with virtually any camera via HDMI or SDI — from DSLRs and mirrorless cameras to professional cinema cameras from ARRI, RED, Sony, Canon, Panasonic, Fujifilm, Nikon, and JVC. Supports Apple ProRes and Avid DNx codecs natively in all major NLE applications including Final Cut Pro, DaVinci Resolve, Premiere Pro, and Media Composer.

Pros & Cons

✅ Pros:

• 3000 nit HDR display — visible even in direct sunlight
• Quad SDI switching + 5-stream simultaneous recording
• HDMI ↔ SDI cross-conversion built in
• 105% DCI-P3 color gamut with calibration support
• Compact 738 g form factor with travel case included

⚠️ Cons:

• NP-F batteries and SSD media sold separately
• No built-in wireless video — requires external transmitter

With its combination of HDR monitoring, multi-codec recording, and quad-input switching packed into a single 7" unit, the Atomos Shogun Classic is a serious production tool for any filmmaker or live event team — find it at Soundium.
