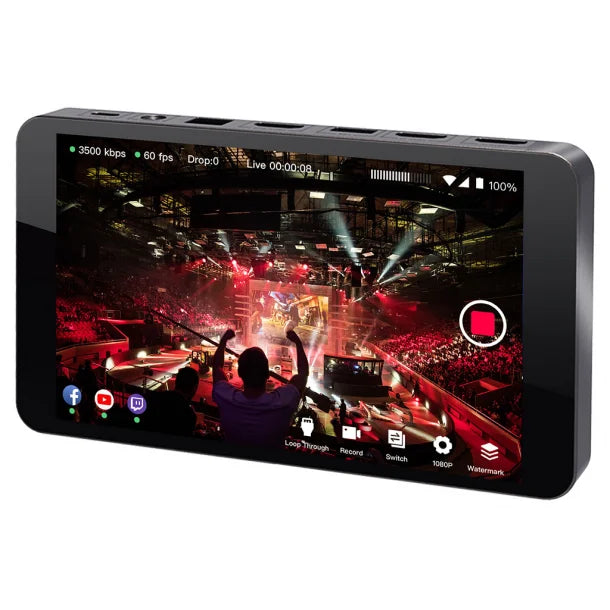

YoloLiv YoloBox Pro – Portable Multi-Camera Live Production System

The YoloLiv YoloBox Pro is a compact all-in-one live streaming studio that combines a switcher, encoder, recorder, monitor and streaming platform in a single unit. With its multi-camera input support, built-in graphics and mobile connectivity, it’s designed for creators, event producers and mobile broadcasters—available at Soundium.

Key Features

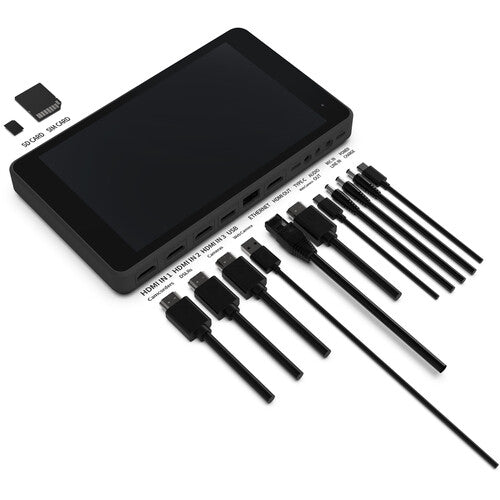

• Multiple input options: Includes HDMI IN 1, HDMI IN 2, HDMI IN 3, USB input and full-featured USB-C input for high flexibility.

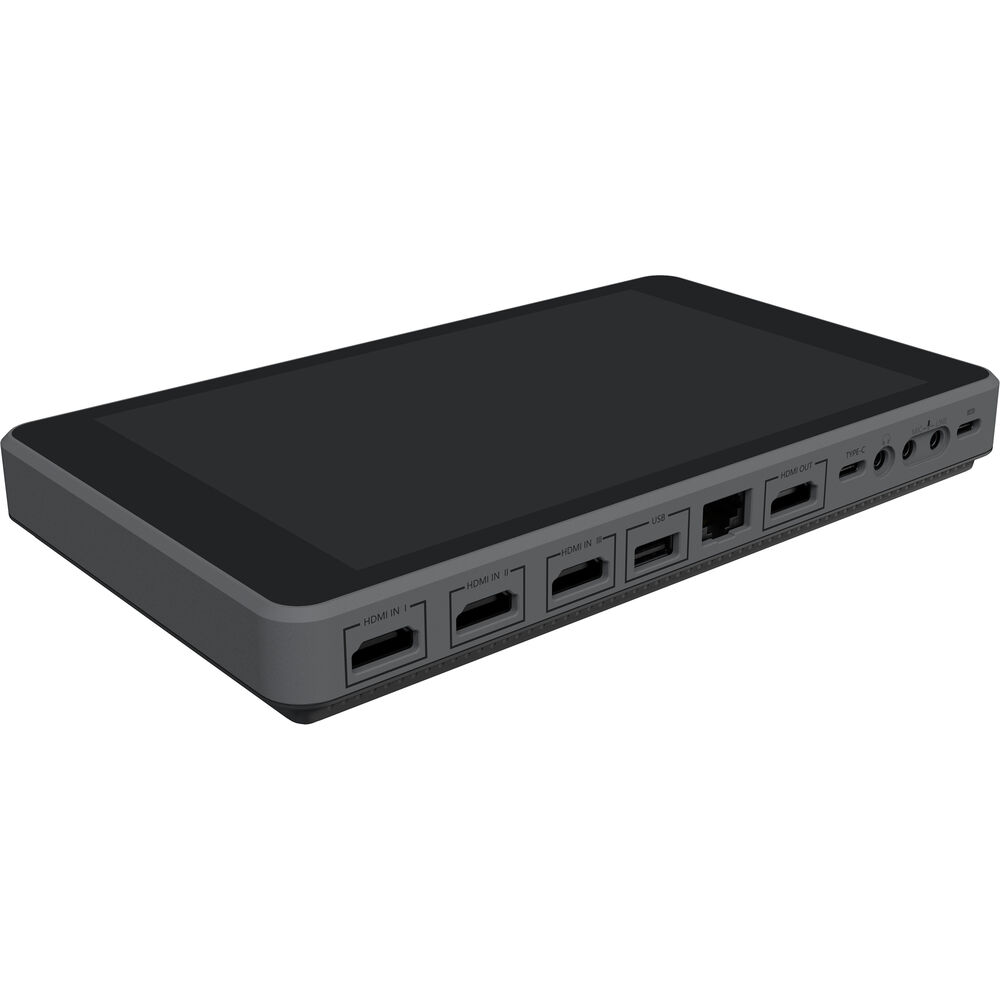

• 3 HDMI inputs and an HDMI output: Allows switching between multiple cameras and routing to a monitor or capture device.
• 10,000 mAh built-in battery: Supports mobile streaming setups without needing mains power.
• Compact and portable design: Weighs about 750 g and measures approximately 129 mm × 218 mm × 27 mm, making it easy to carry in a backpack.
• Software control and overlays: Includes support for live switching, picture-in-picture, lower thirds, scoreboards, chroma key and streaming to multiple destinations simultaneously.
• Network and mobile connectivity: Features Wi-Fi (2.4 GHz/5 GHz), Ethernet and Nano-SIM slot for 4G LTE to stream from virtually any location.

Customer Benefits

The YoloBox Pro provides a professional-level live production workflow in a portable form factor. Users can switch cameras, mix audio, add overlays and stream without needing separate switchers, laptops or complex setups. With its mobile-ready battery and multiple input options, you can go live from field locations, events or studios with ease—available at Soundium.

Quick Specs

• Live broadcast resolution: Up to 1080p
• Inputs: 3 × HDMI IN, 1 × USB-C input, USB-A input
• Battery: 10,000 mAh (internal)
• Body size: Approx. 129 mm × 218 mm × 27 mm
• Weight: Approx. 750 g
• Network: Wi-Fi 2.4/5 GHz, 4G LTE via Nano-SIM, Ethernet RJ-45

What’s in the Box

• YoloLiv YoloBox Pro device
• Power adapter and USB-C cable
• User manual

Use Cases / Ideal For

Perfect for streaming live events, mobile productions, sports broadcasts, worship services, multi-camera podcasts, corporate presentations and on-site content creation. Especially useful when you need a compact, fast-deploy streaming unit.

Compatibility

Works with HDMI cameras, USB webcams, NDI sources (via appropriate adapter), pre-recorded media, SD card overlays, internet streaming platforms (RTMP/SRT). Integrates with tripods, gimbals or field rigs.

Pros & Cons

✅ Pros:

• All-in-one system reduces gear and setup complexity
• Supports mobile streaming with battery and SIM connectivity
• Multi-camera input and graphics features elevate production value

⚠️ Cons:

• 4K input/streaming may not be supported in standard version—check model capabilities
• Advanced audio mixing or large-scale broadcast features may require external equipment

The YoloLiv YoloBox Pro offers a highly capable live production studio in a portable package, enabling creators and producers to go live from anywhere with flexibility and power—available at Soundium.
