OXI Instruments Pipe MKII – Eurorack Breakout Module for OXI One MKII

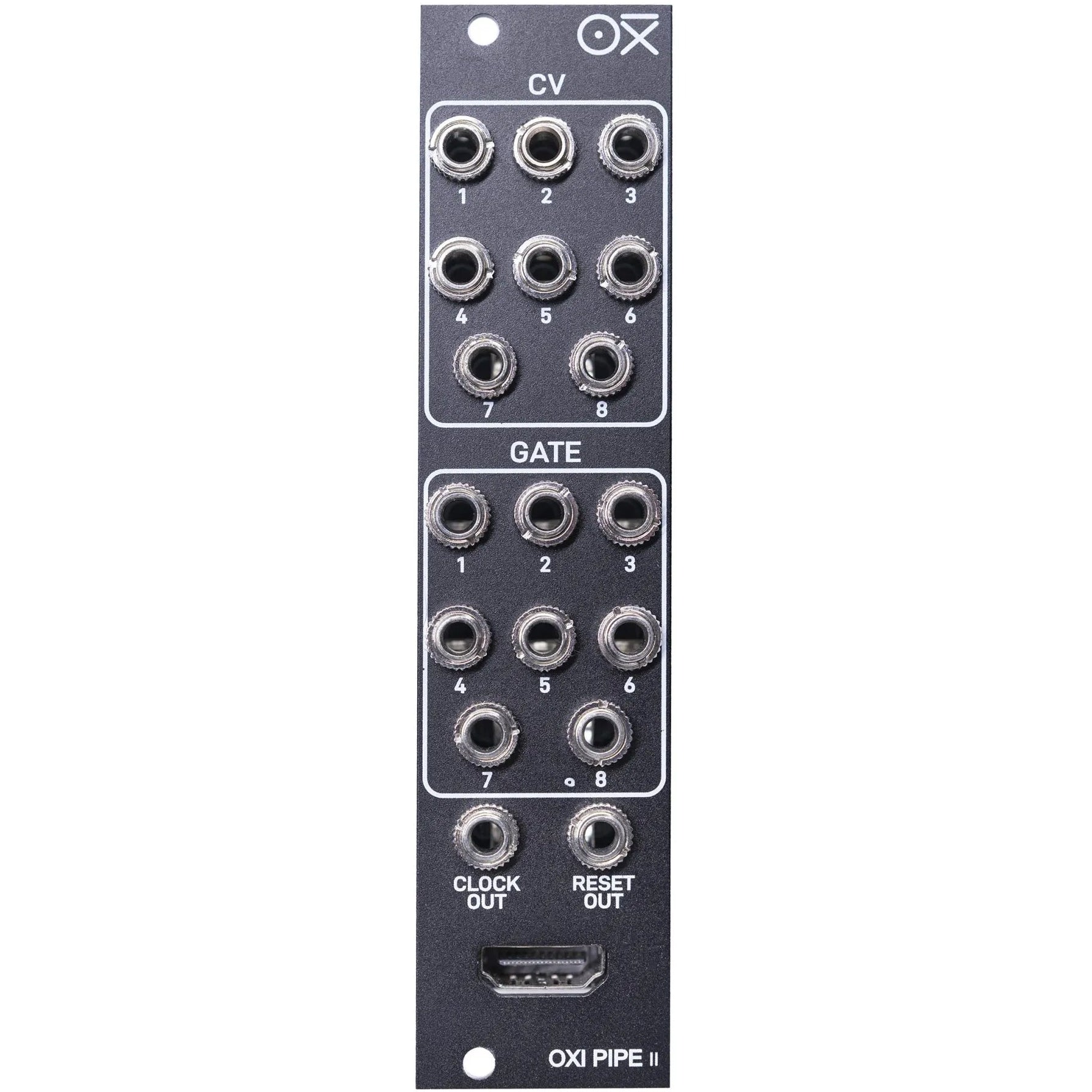

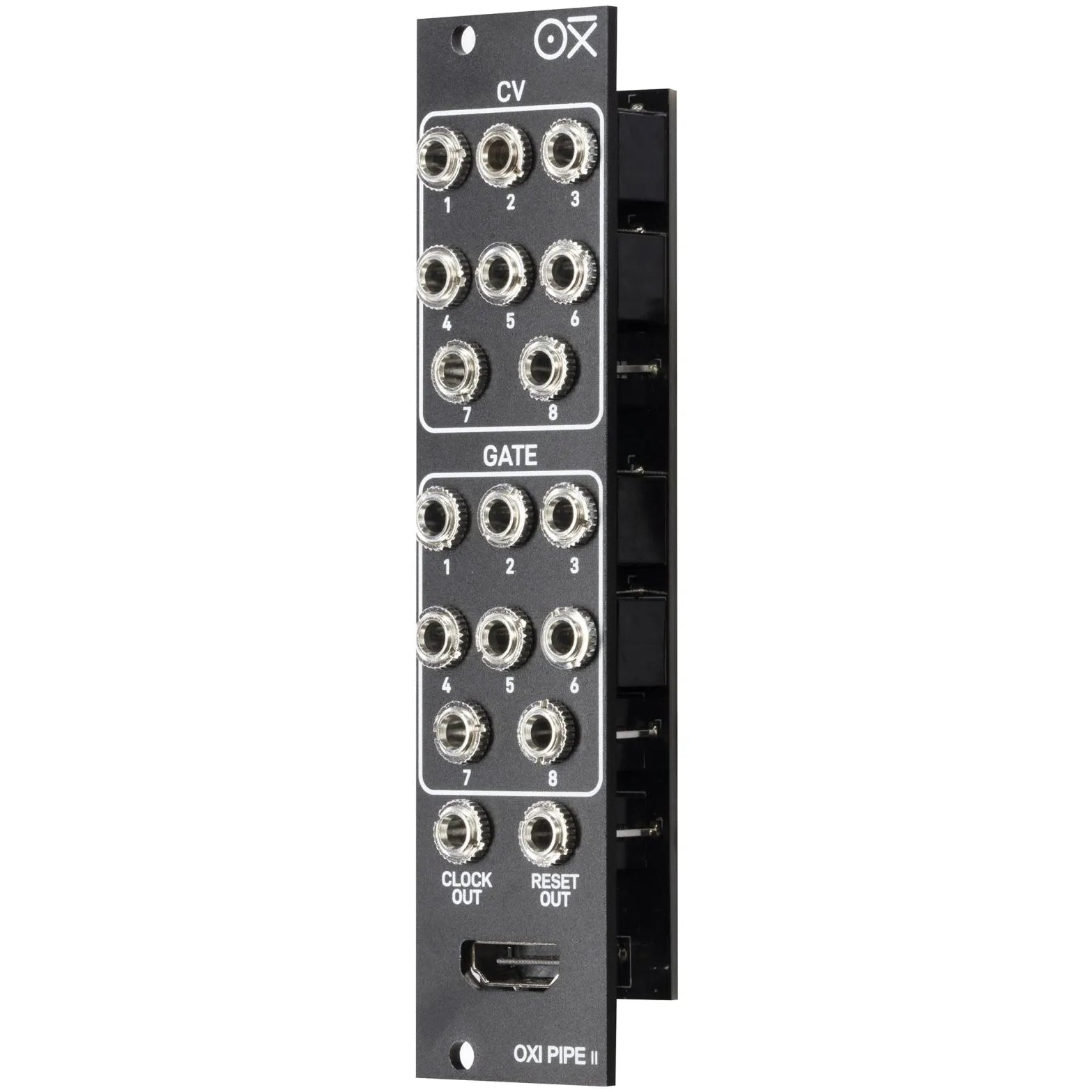

The OXI Instruments Pipe MKII is a passive 6HP Eurorack breakout module that routes all 8 CV outputs, 8 gate outputs, plus clock and reset signals from the OXI One MKII sequencer into your Eurorack system through a single HDMI cable. Zero power required, zero hassle — just plug in and play. Pick one up at Soundium.
Key Features
-
Full Signal Routing: 8× CV outputs + 8× gate outputs + clock out + reset out — all from one HDMI cable
-
Passive Design: No power supply required (0 mA consumption) — takes up zero power budget
-
Compact 6HP: Minimal rack space for full One MKII connectivity
-

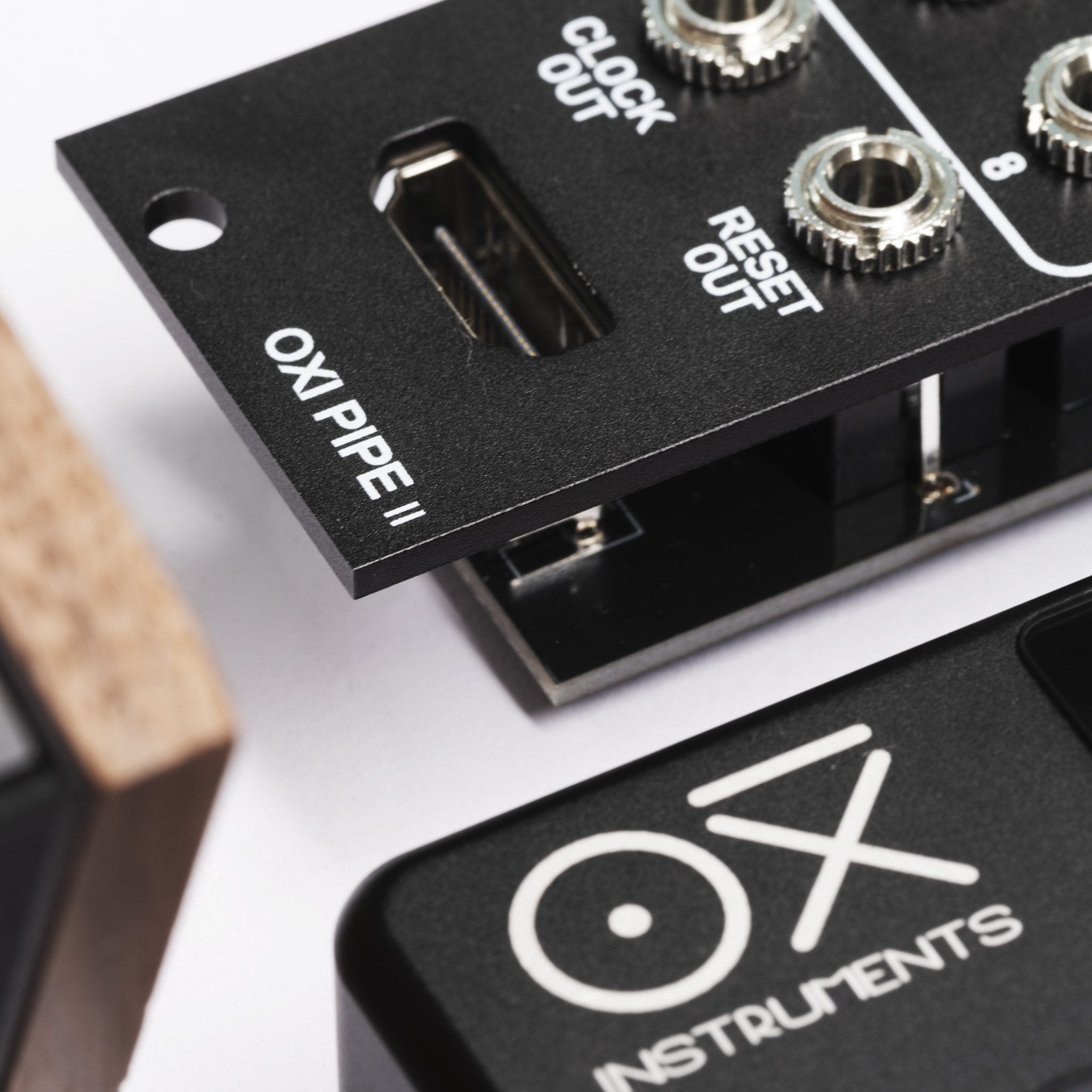

Single-Cable Connection: Mini-HDMI to HDMI cable included — one cable carries all signals
-
Dual Pipe Support: Two Pipe MKII modules can interconnect between separate racks
Customer Benefits
Pipe MKII eliminates the need for multiple patch cables between the OXI One MKII and your Eurorack system. A single HDMI cable replaces what would otherwise be 18+ individual connections, making setup and teardown fast and clean. Since it's fully passive, it adds nothing to your power budget — pure signal routing.
Quick Specs
-
Format: Eurorack, 6HP
-
Outputs: 8× CV, 8× Gate, 1× Clock, 1× Reset
-
Connection: HDMI (mini-HDMI to HDMI cable included)
-
Power: 0 mA (passive, no power required)
-
Compatibility: OXI One MKII only
What's in the Box
- OXI Instruments Pipe MKII module
- Mini-HDMI to HDMI cable
Use Cases / Ideal For
Essential for any OXI One MKII user who wants to integrate their sequencer with a Eurorack modular system. Especially useful for live performers who need quick setup/teardown and for multi-rack setups where two Pipe modules can bridge racks.
Compatibility
Compatible with OXI One MKII only (not compatible with original OXI One). Works with any standard Eurorack system. Any HDMI 2.0 or higher cable (4K rated) can be used as a replacement — longer cables may reduce CV accuracy.
Pros & Cons
✅ Pros:
- Single cable replaces 18+ patch connections
- Zero power consumption — fully passive
- Compact 6HP footprint
- Cable included in the box
⚠️ Cons:
- Compatible only with OXI One MKII — not the original OXI One
- Longer HDMI cables may degrade CV signal accuracy
The cleanest way to connect your OXI One MKII to Eurorack — one cable, 18 signals, zero power draw. The OXI Instruments Pipe MKII keeps your modular setup tidy and your workflow fast. Get it at Soundium.
