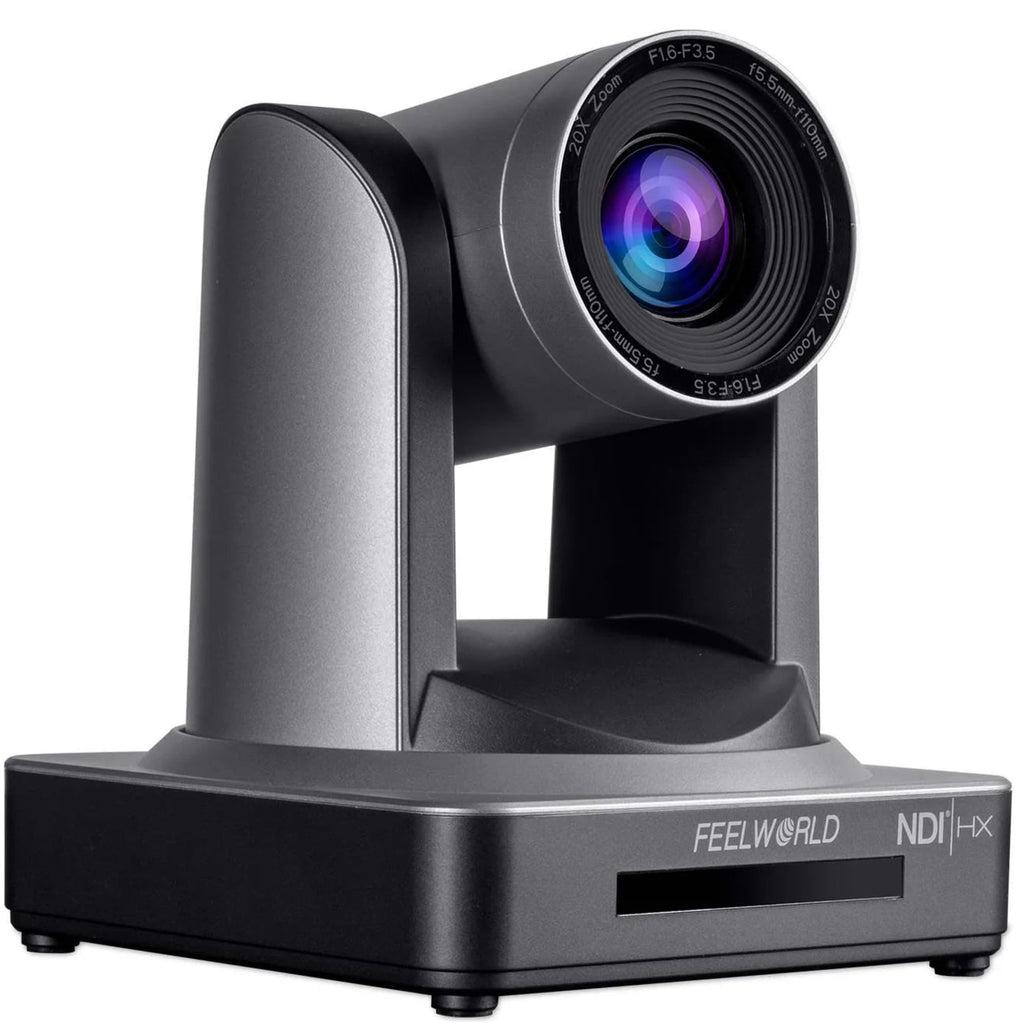

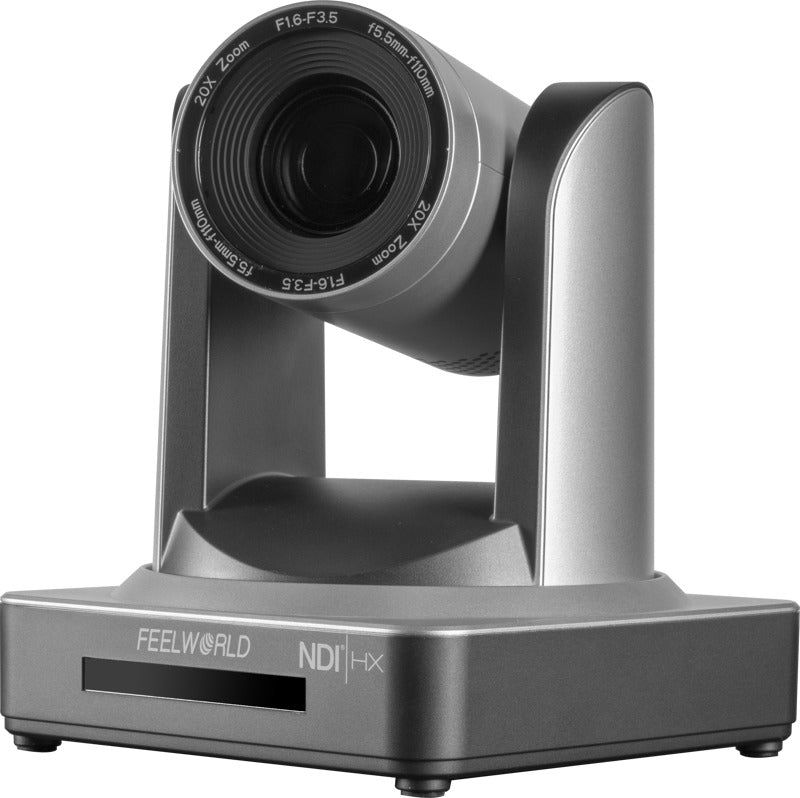

Feelworld NDI20X – 1080p PTZ Camera with 20x Optical Zoom, NDI|HX & PoE

The Feelworld NDI20X is a professional PTZ camera for hybrid events, worship, education, and corporate streaming. With 1080p60 video, NDI|HX low-latency IP transport, simultaneous SDI/HDMI outputs, and PoE single-cable deployment, it delivers broadcast-level control and image quality with straightforward setup—Soundium helps you streamline production.

Key Features

• Full HD at 60 fps: 1080p60 imaging with accurate colour for smooth, lifelike motion in conferences and live shows.
• 20x optical zoom with autofocus: Frame the whole room or tight close-ups without losing detail.
• NDI|HX IP streaming: Low-latency video/audio over network, reducing cabling and simplifying multi-camera workflows.
• Simultaneous outputs: 3G-SDI (up to 100 m at 1080p60), HDMI, and IP/NDI for flexible routing to switchers, capture cards, or encoders.
• PoE support: Power, control, and video over a single Ethernet cable to cut clutter and setup time.
• Smooth, silent PTZ: ±170° pan (340° total) and −30° to +90° tilt with fast, quiet motors for distraction-free operation.
• Low-light optimisation: High-SNR CMOS with advanced 2D/3D noise reduction keeps images clean in challenging lighting.
• Up to 255 presets: Store shot angles and recall instantly via IR remote or web control for fast, repeatable transitions.

Customer Benefits

NDI20X gives you broadcast-style results without a complex rig. Single-cable PoE installs neatly, multiple video outputs fit any workflow, and 20x zoom covers larger rooms. Presets and quiet PTZ make live direction smooth, while NDI|HX ensures low-latency IP production.

Quick Specs

• Resolution / frame rate: 1080p up to 60 fps

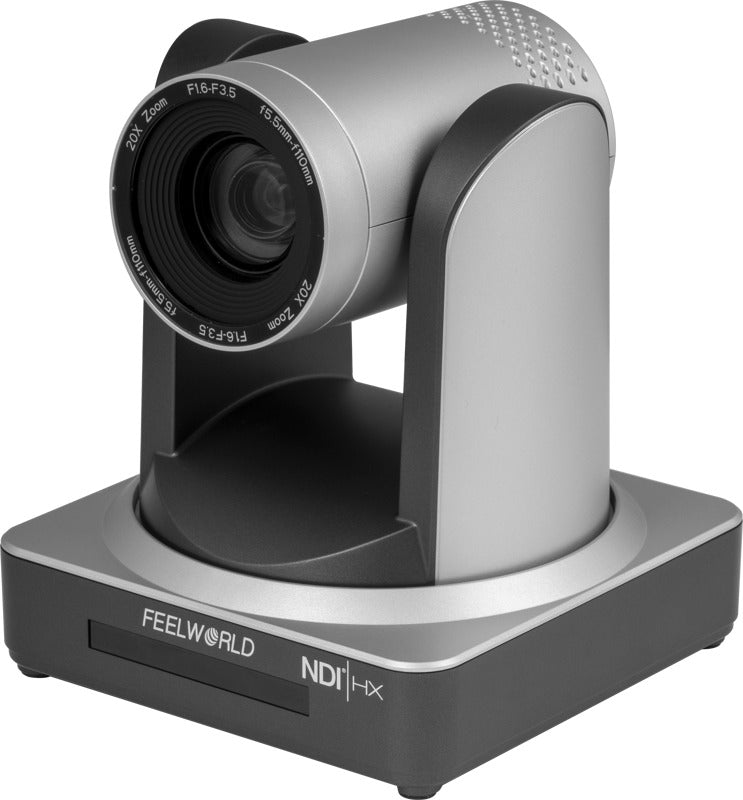

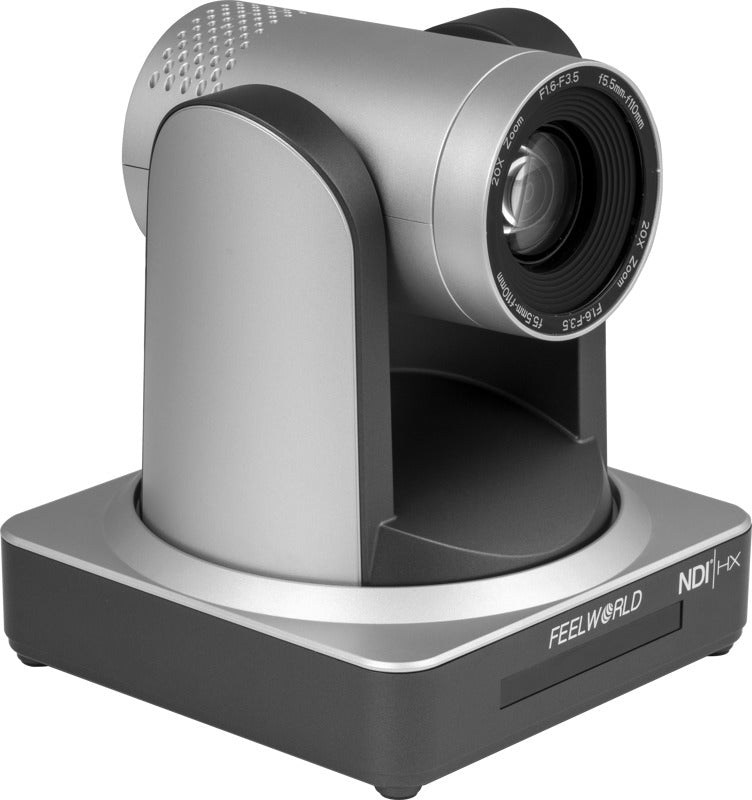

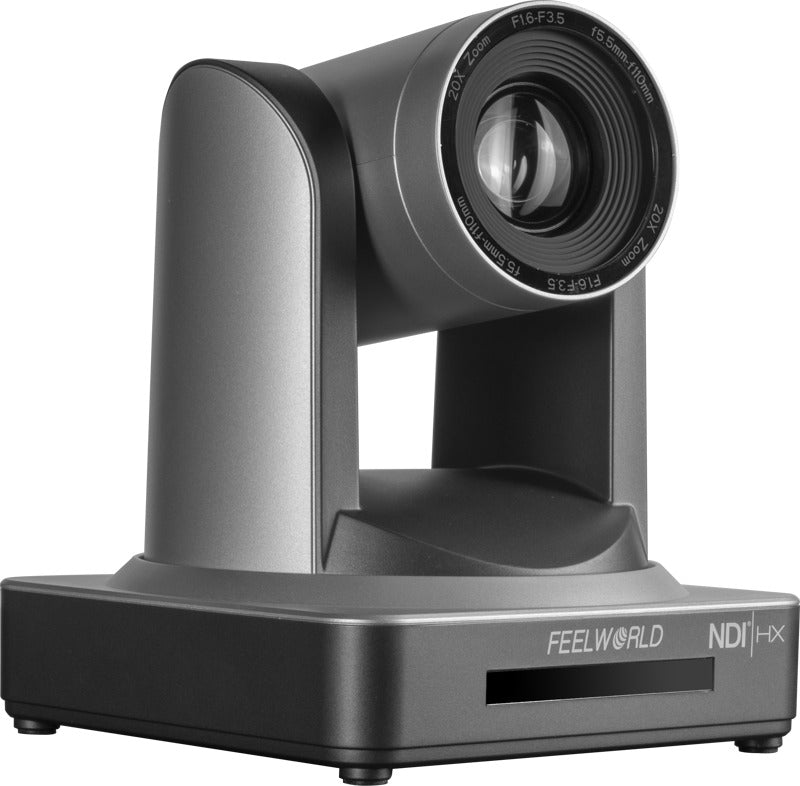

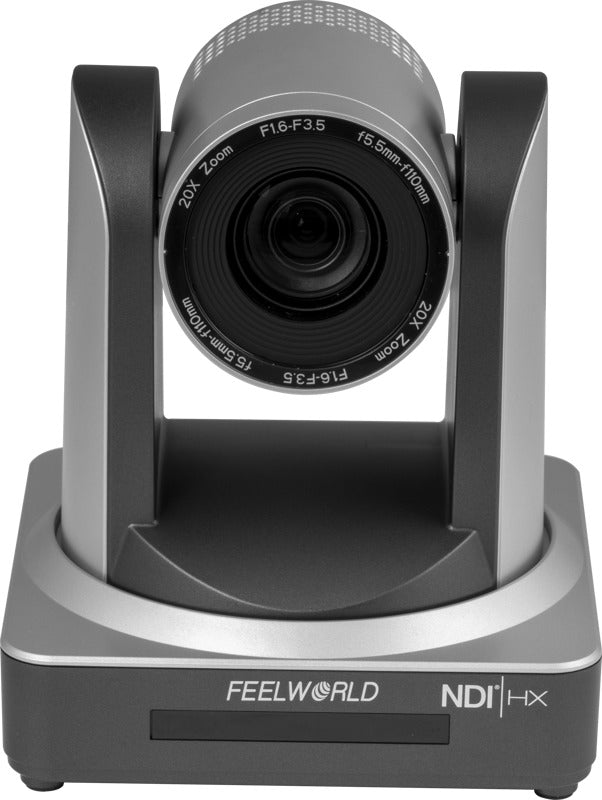

• Optical zoom: 20x (focal length 5.5–110 mm; max aperture f/1.6–f/3.5)
• Viewing angle: approx. 60.7° (wide) to 3.36° (tele)
• Pan / Tilt: ±170° pan (340° total); −30° to +90° tilt

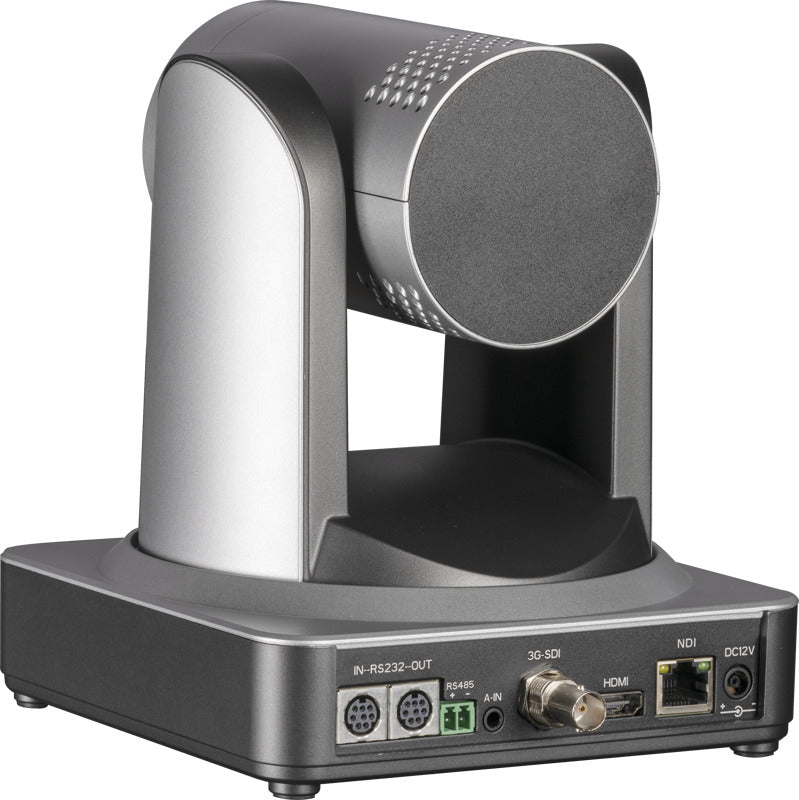

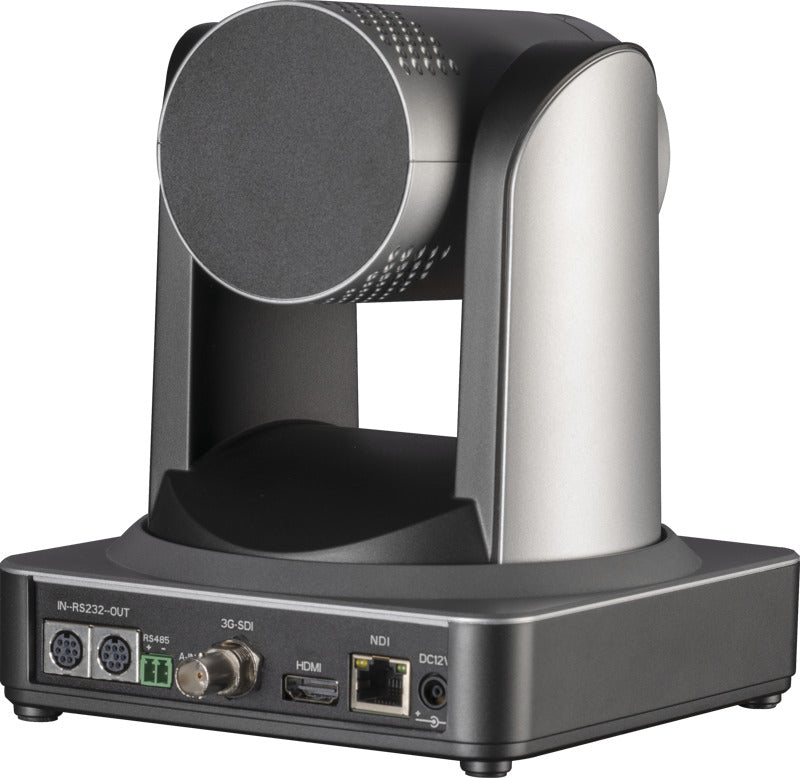

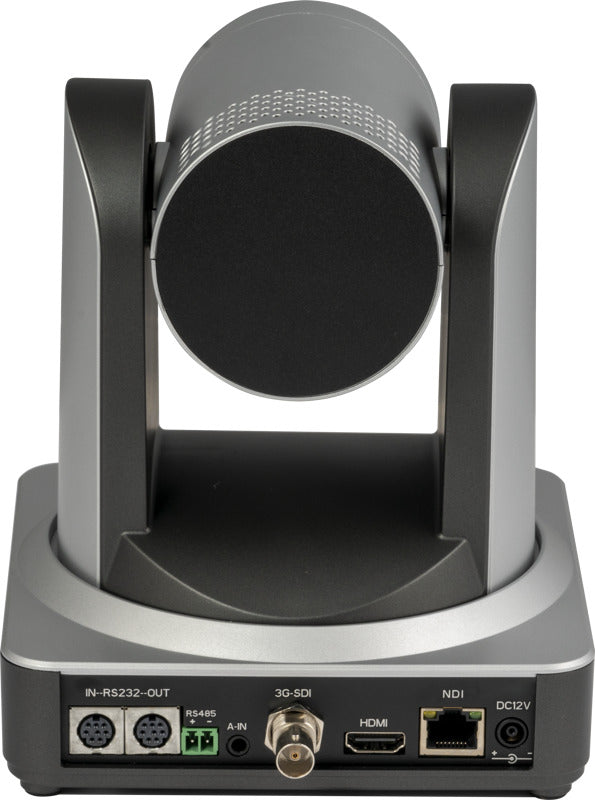

• Video outputs: 3G-SDI, HDMI, IP (NDI|HX/H.264/H.265)
• Audio: Dual 3.5 mm line inputs (embedding to stream)
• Control: IR remote, web interface, VISCA, Pelco D/P
• Networking: PoE (power + control + video over Ethernet)
• Dimensions (W × H × D): 15.0 × 16.8 × 15.0 cm
• Weight: ≈1.4 kg

What’s in the Box

• Feelworld NDI20X PTZ camera
• IR remote control
• RS232 control cable
• RS485 terminal block
• Power adapter
• Standard power cable
• User manual

Use Cases / Ideal For

Church live streaming, lecture capture and online classes, corporate town halls and video conferences, sports and event coverage, multi-cam productions with NDI-based switchers.

Compatibility

Works with popular platforms such as YouTube, Facebook, and Twitch via IP streaming. Integrates with NDI-capable switchers and software; outputs simultaneously to SDI/HDMI hardware. Supports VISCA and Pelco D/P over serial or IP. Mount on wall, ceiling, or tripod (mounting bracket not included).

Pros & Cons

✅ Pros:

• NDI|HX plus SDI/HDMI gives maximum routing flexibility.
• PoE single-cable deployment simplifies installs.
• 20x zoom and quiet PTZ suit larger rooms and live direction.
• H.264/H.265 options keep streams stable on limited bandwidth.

⚠️ Cons:

• 1080p resolution only; no 4K mode.
• Wall/ceiling bracket sold separately.
• Menu via remote/web can feel basic compared to high-end broadcast controllers.

The Feelworld NDI20X combines low-latency NDI|HX, clean 1080p60 optics, and easy PoE installation into a compact PTZ solution. For venues and teams that need reliable, flexible live video without the tangle of extra gear, it’s a smart upgrade—Soundium supports your production from setup to stream.
