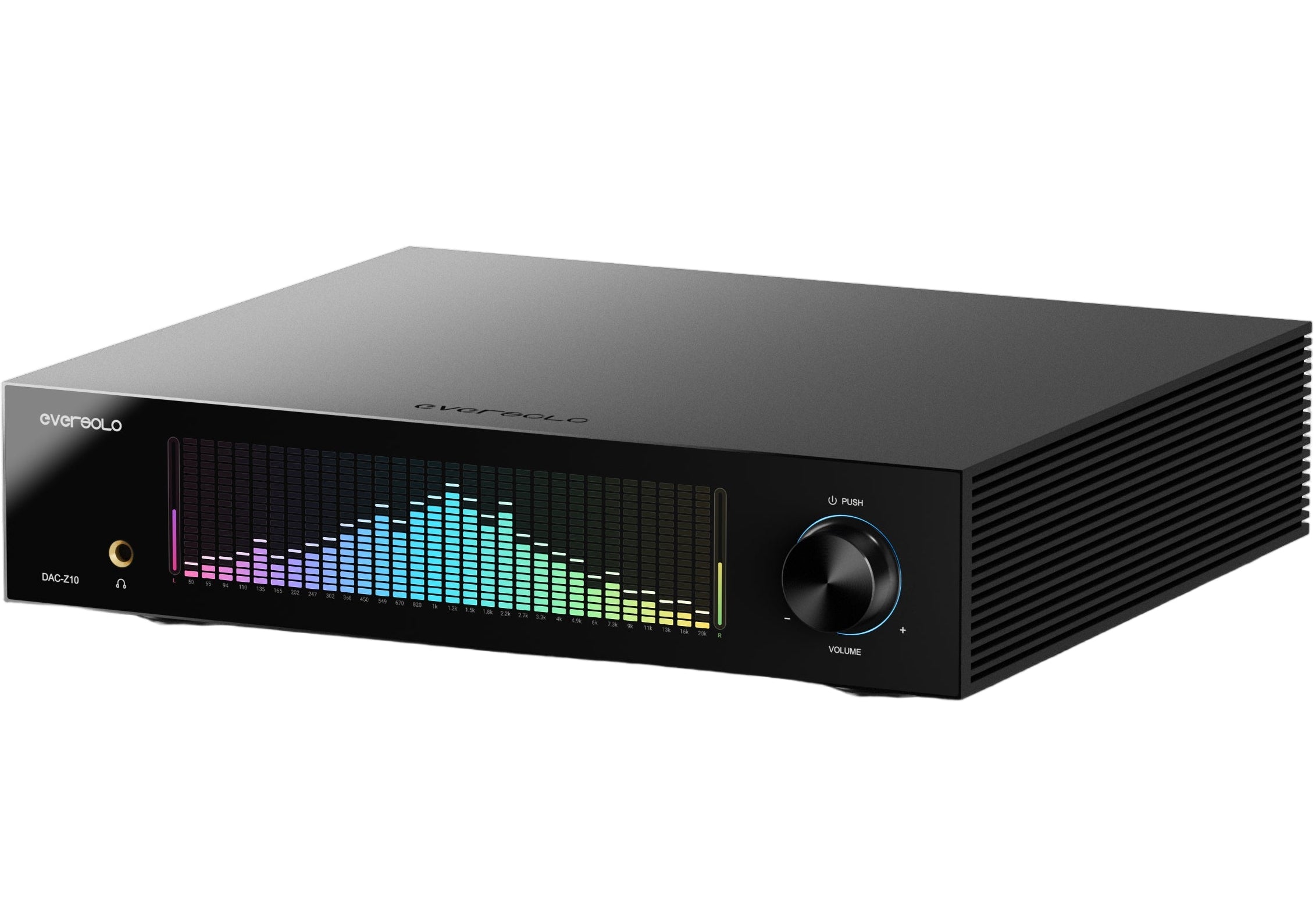

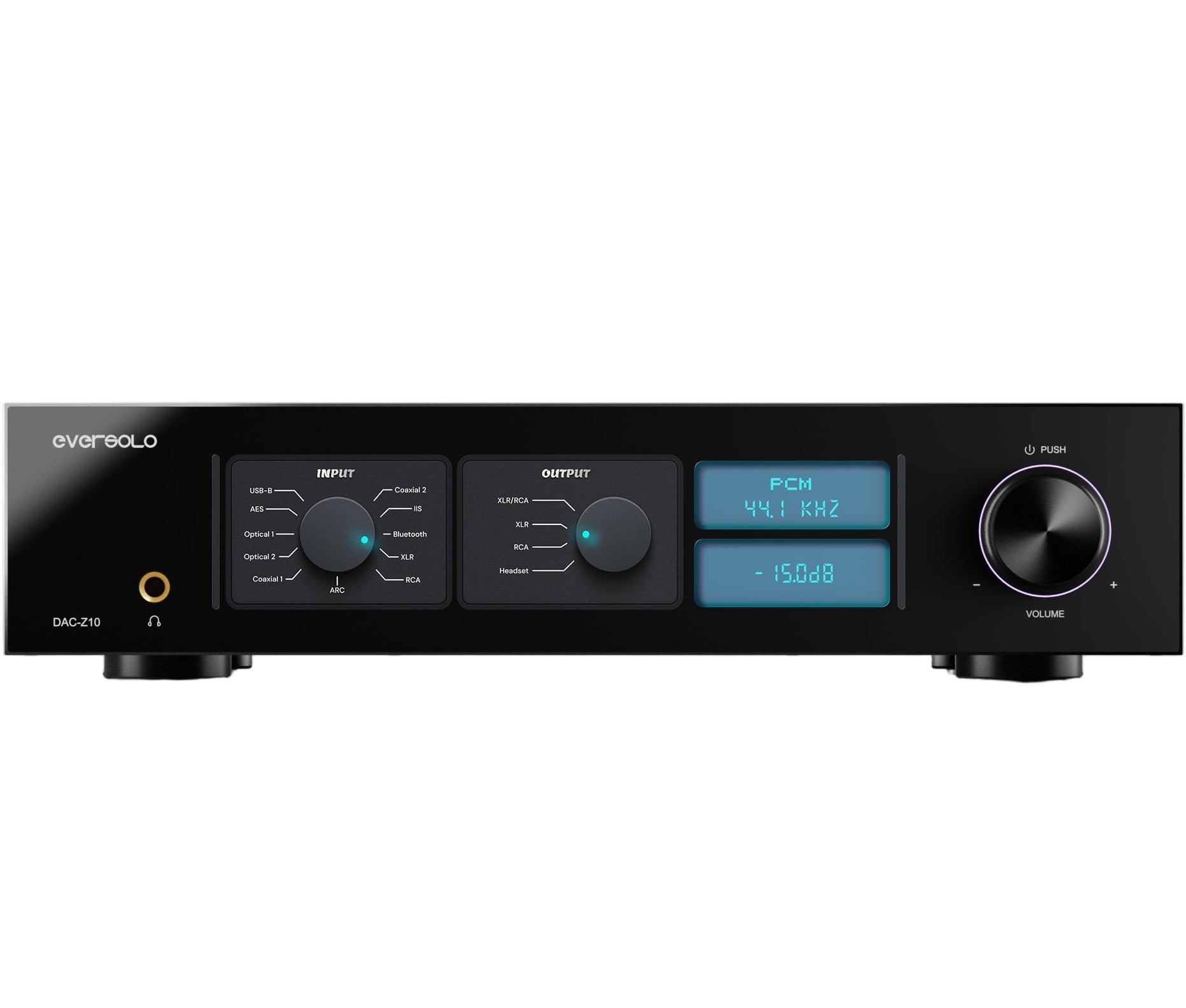

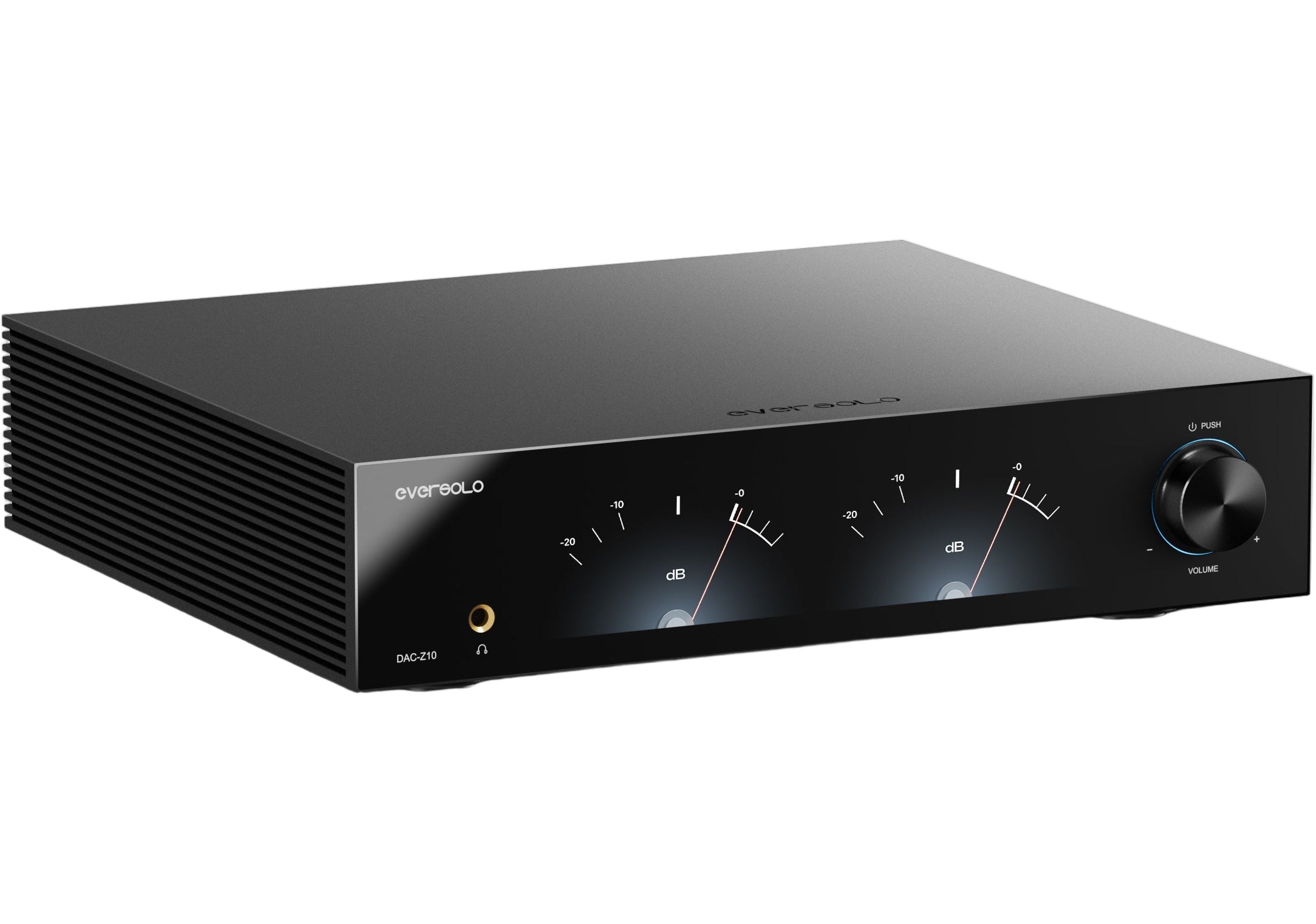

Eversolo DAC-Z10 – Flagship Dual-Mono DAC & Fully Balanced Preamplifier

The Eversolo DAC-Z10 is designed for listeners who want to unlock the full potential of their music. Built on Eversolo’s Fully Isolated Architecture, it separates the digital and analog domains to preserve absolute signal purity. With dual AKM DAC modules per channel, a balanced analog preamp, and robust power delivery, the DAC-Z10 reveals authentic texture, depth, and detail across your entire music library.

Key Features

• Fully Isolated Architecture: Independent linear power supplies for the left channel, right channel, and system ensure ultra-low-noise operation and exceptional channel separation.
• Dual-mono AKM decoding: Each channel uses its own AK4191 modulator plus AK4499 DAC, enabling high dynamic range and superior low-distortion performance.
• Balanced analog preamplifier: Features precise dual-channel R2R volume control for transparent, accurate level management.
• Extensive high-resolution input support: USB-B, I²S, AES/EBU, optical, coaxial, ARC, and Bluetooth—all supporting high-res PCM, DSD, and DoP formats.
• High-performance headphone output: Multiple gain modes provide clean, dynamic power for headphones from 16–300 Ω.

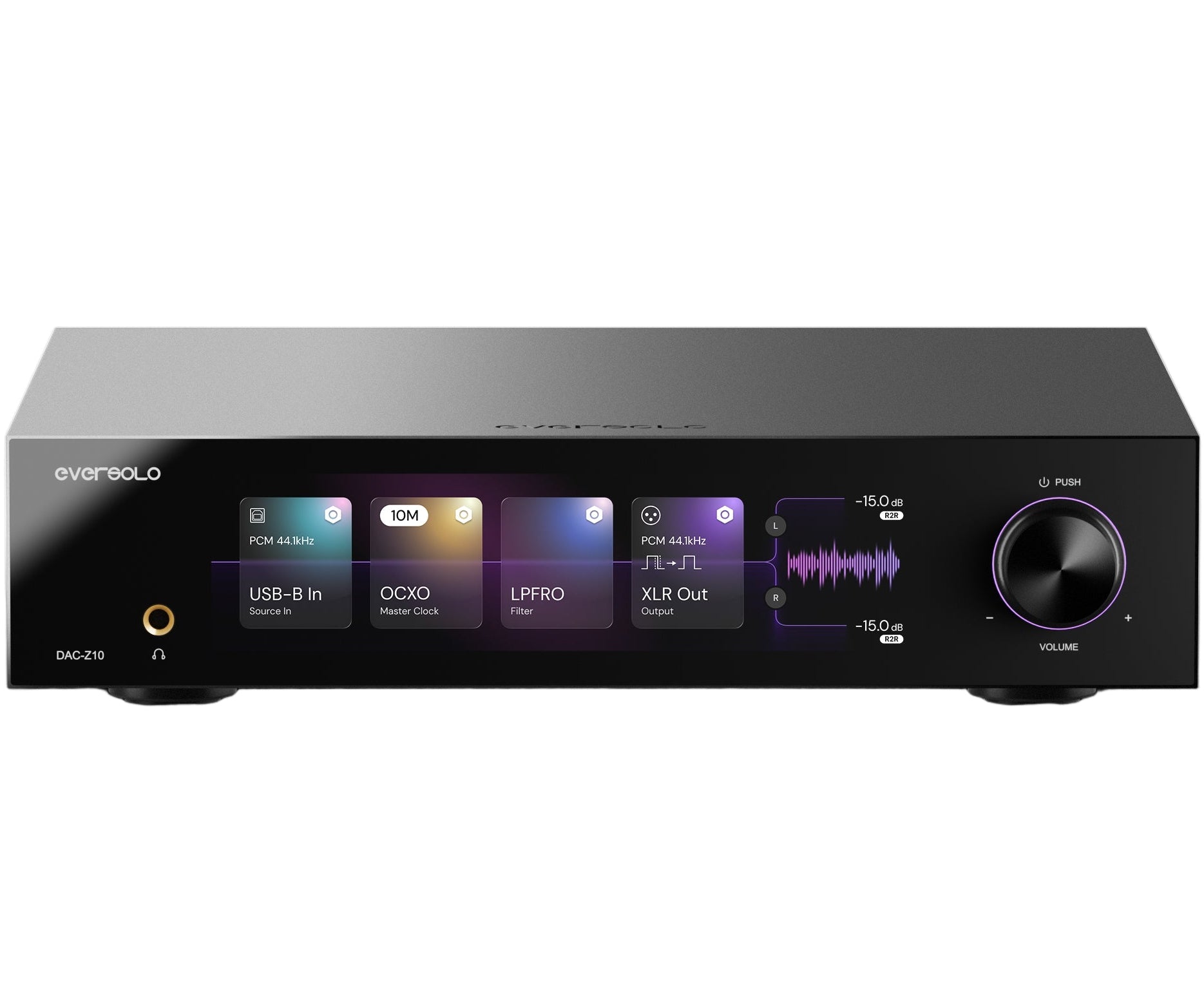

• Premium construction: 8.8-inch IPS display, aluminium alloy chassis, and a dedicated multi-core USB audio processor for stable operation.

Customer Benefits

With its combination of dual-mono DAC architecture, isolated power design and a high-grade analog stage, the DAC-Z10 significantly elevates clarity, imaging and dynamic expression. It can serve as both a top-tier DAC and a full preamplifier, allowing you to run it directly into power amplifiers, active speakers or a high-quality headphone setup. The broad input selection makes it easy to integrate into hi-fi systems, studio environments or TV audio chains.

Quick Specs

• DAC configuration: Dual-mono AK4191 + AK4499 per channel

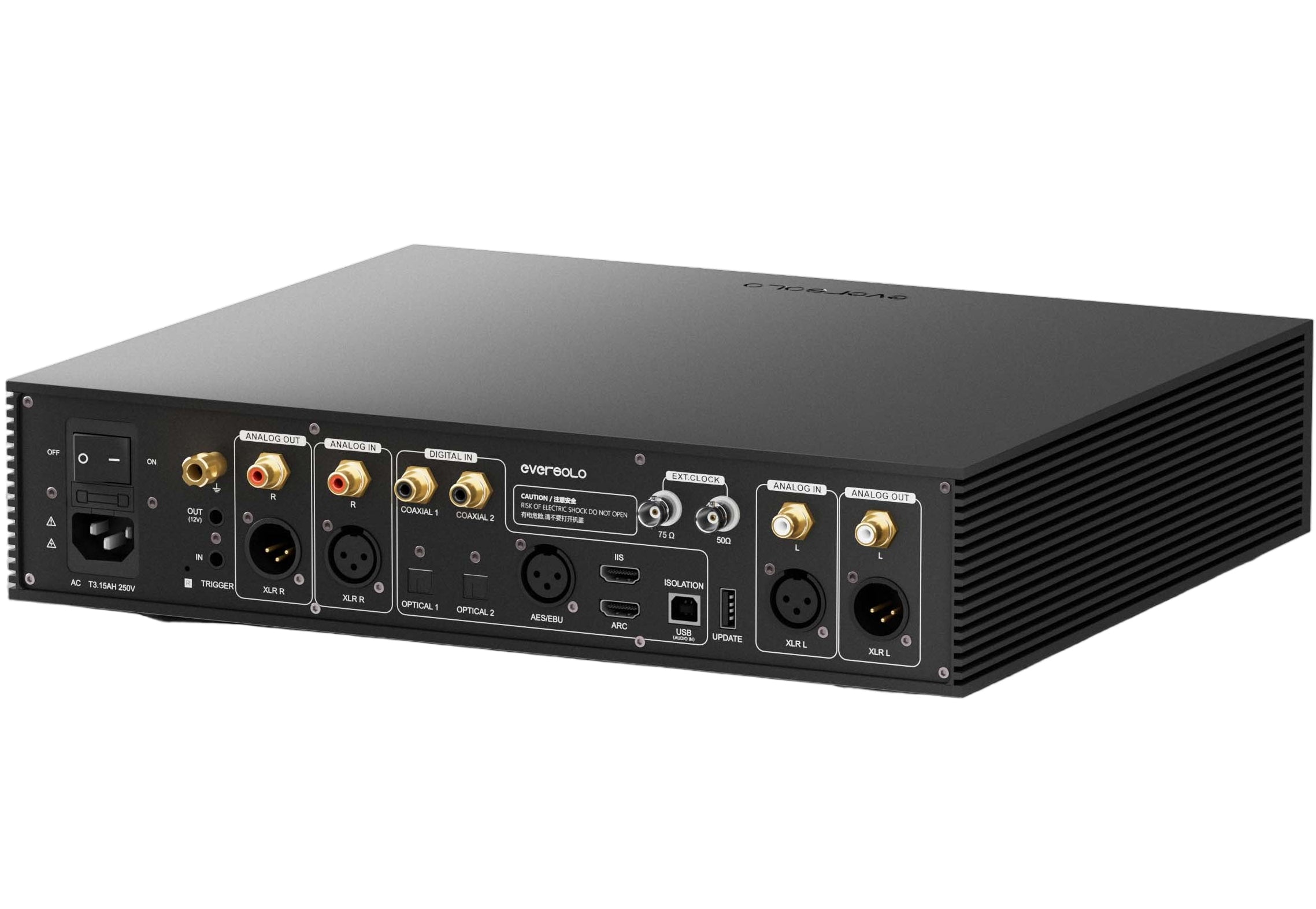

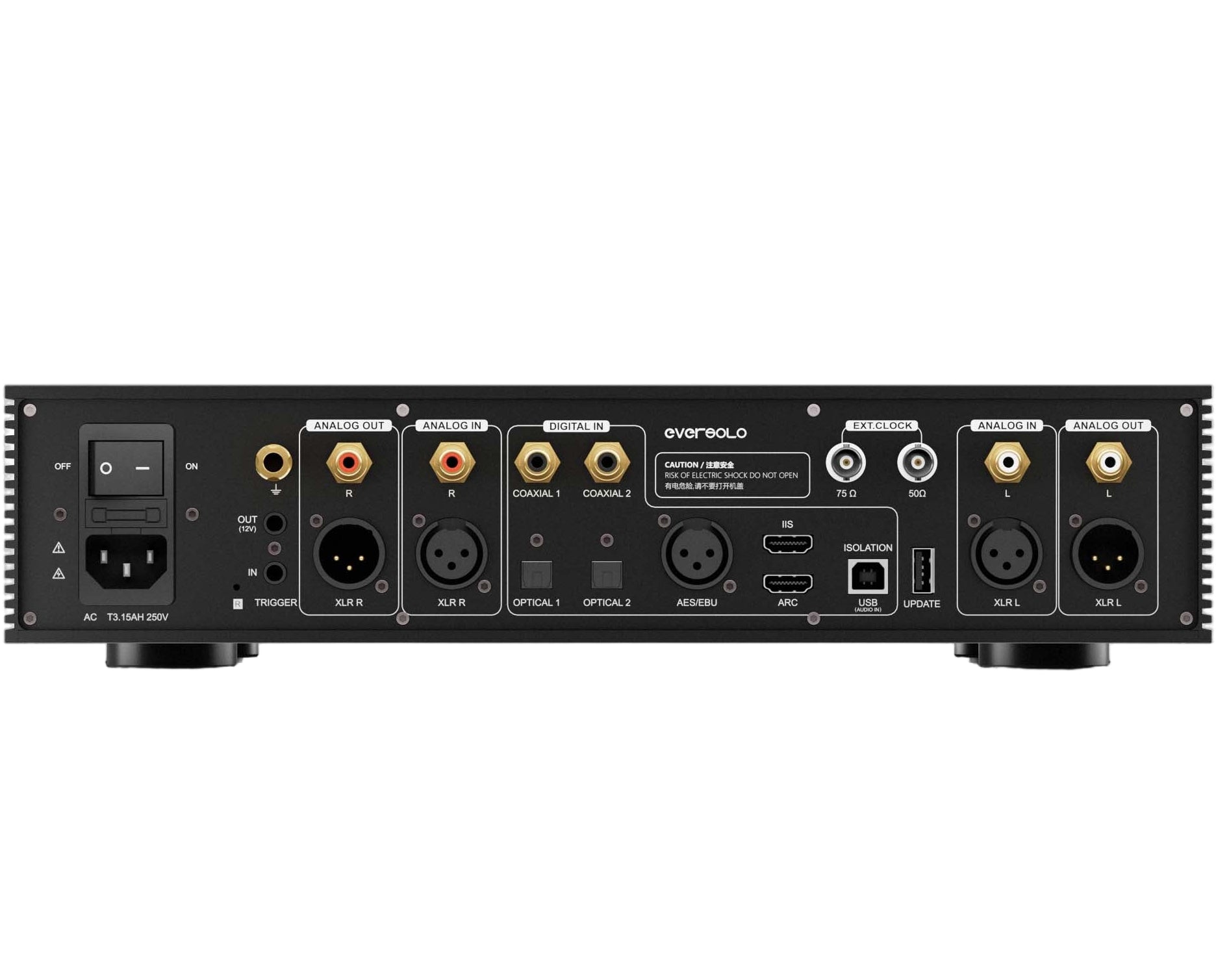

• Inputs: USB-B, I²S, AES/EBU, 2× optical, 2× coaxial, ARC, Bluetooth 5.0
• Analog inputs: XLR, RCA
• Analog outputs: XLR balanced pre-out, RCA pre-out, 6.35 mm headphone out
• Recommended headphone load: 16–300 Ω
• Power consumption: 32 W
• Dimensions: 36.5 × 31 × 8.8 cm
• Weight: Approx. 4 kg

What’s in the Box

• Eversolo DAC-Z10
• Remote control
• Power cable
• USB data cable
• Trigger cable
• USB drive for firmware updates
• Polishing cloth
• User manual

Use Cases / Ideal For

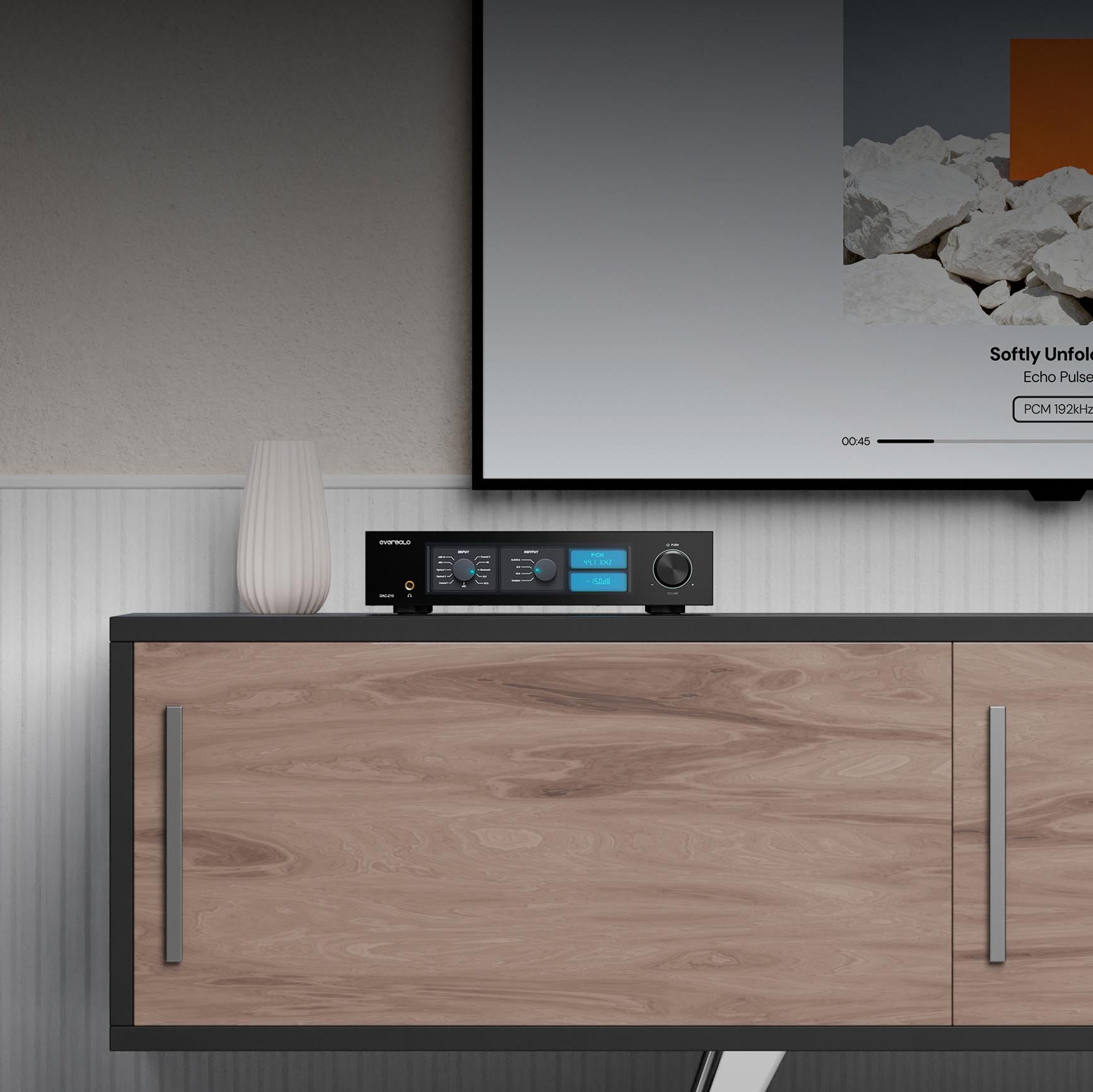

Ideal for high-end hi-fi systems, desktop reference setups, headphone listening, active speaker configurations and systems requiring a dedicated DAC and preamplifier in one chassis.

Compatibility

Works with Windows, macOS, iOS and Android via USB-B; accepts external master clocks; integrates with amplifiers, active speakers, and headphone systems via balanced and unbalanced outputs.

Pros & Cons

✅ Pros:

• Dual-mono DAC design with exceptional dynamic range and clarity
• Functions as both DAC and high-quality analog preamp
• Excellent connectivity for audiophile, TV and desktop setups

⚠️ Cons:

• Large chassis requires dedicated shelf space
• Headphone output is single-ended only

The Eversolo DAC-Z10 brings flagship-level conversion, refined analog engineering and comprehensive connectivity together in one beautifully built component. It’s a powerful centrepiece for any modern hi-fi or headphone setup.
